X Ray 15 Performa

PERFORMA version (optional) with third tube integrated in the header of the collector which allows entry and exit on the same side, with in-line installation and parallel connection. This brings the exclusive and extraordinary advantage of not having to make the external return line and drastically reduces installation costs and time, ensures balanced plumbing systems and a clean stylish appearance.

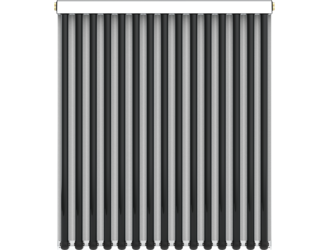

High efficiency vacuum solar collectors Pleion X-RAY R consisting of 58 mm diameter borosilicate double air casing vacuum tubes. Anodized aluminum framework for strength. Direct and diffused solar radiation penetrates the outside of the tubes and is captured in the absorber. The X-Ray 15 collector comes with a parabolic reflector which enhances the annual Energy performance.

A special aluminum absorber inside the glass tube transfers the heat to the copper U tube inside the tubes. Strength, reduced overall dimensions, energy performance and exclusive design make it a quality benchmark for the solar thermal market.

1 Three tube connectors allowing entry and exit on the same side
2 CPC (Compound Parabolic Concentrator) reflectors
3 Highly selective coating on absorber surfaces
4 Household water storage corrosion resistant
