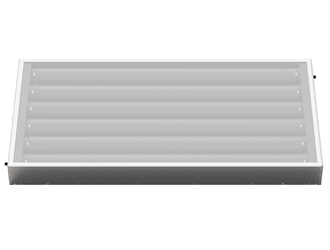

Ego Prime 220

The system has a stainless steel storage accumulation for marine applications, suitable for the storage of any drinking water. Formed by a series of tubes of 35 liter capacity, connected to their end by means of coupling between plastic and metal curved curves, which ensure the pressure hold up to 10 bar. Equipped with hydraulic connections (sanitary water) of 3/4'' with flat battening, preparation of 1'' 1/4 attachments for installation of the thermal integration resistance (high part) and elet. Antifreeze (low part), external structure in aluminum resistant to high temperatures, internal structure, galvanized sheet and frontal polycarbonate Lexan antigrandine cover, supported with high thermal properties. Standard brackets for laying on flat roof and pitched roof and pressure valve with anti-flush combined function.

1 LEXAN™ THERMOCLEAR™ alveolar polycarbonate
2 PVC structure and frame
3 Easy-to-change frame
4 Household water storage corrosion resistant
5 Canopies with an innovative closing system
